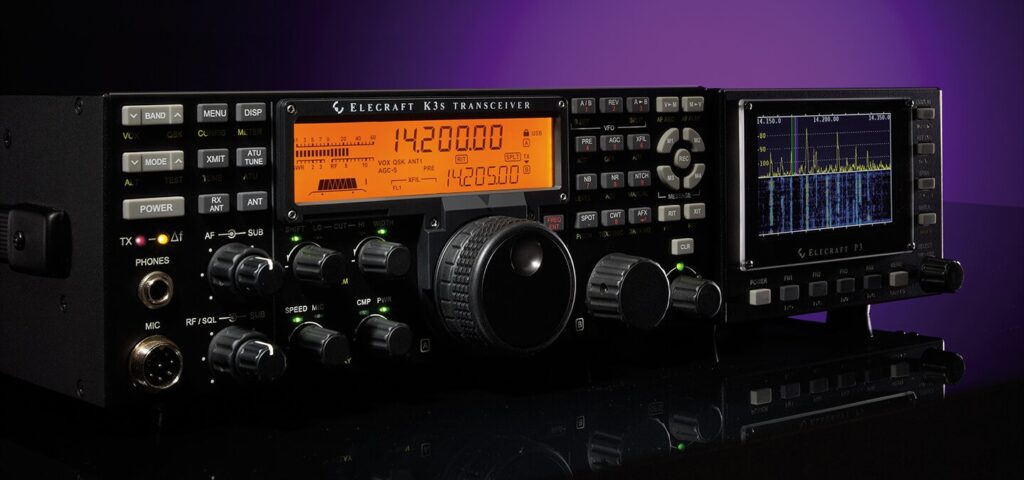

I use it as IF for my transverters for 70-144-432-1296 MHz

I have added GPSDO + injection board from Leo Bodnar, to ensure the needed stability for digimode.

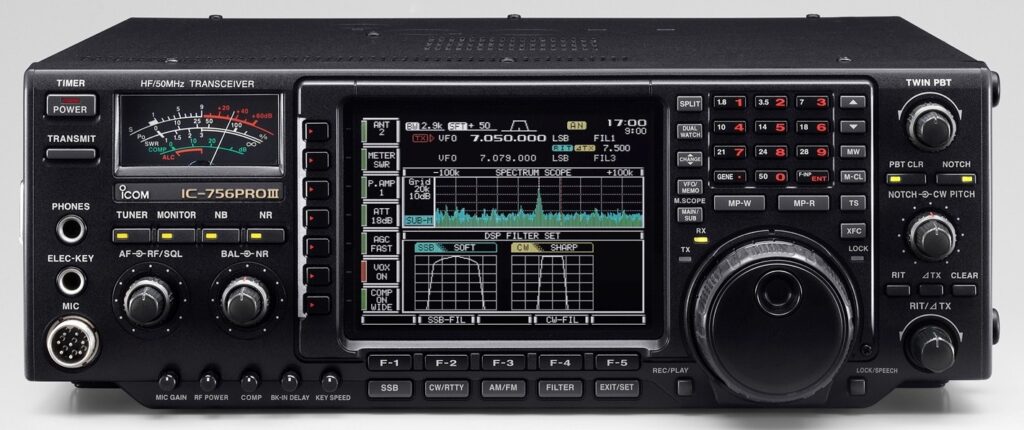

Have used it for 50 and 70MHz + added the DB6NT transverter interface.

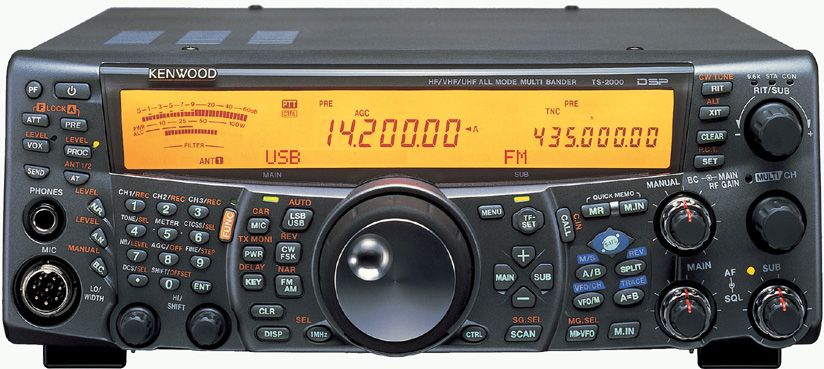

Used this rig af IF for my transverters until I got my IC-7610 in 2023.
As long as I can avoid big signals from fellow hams, it´’s doing a fine job.

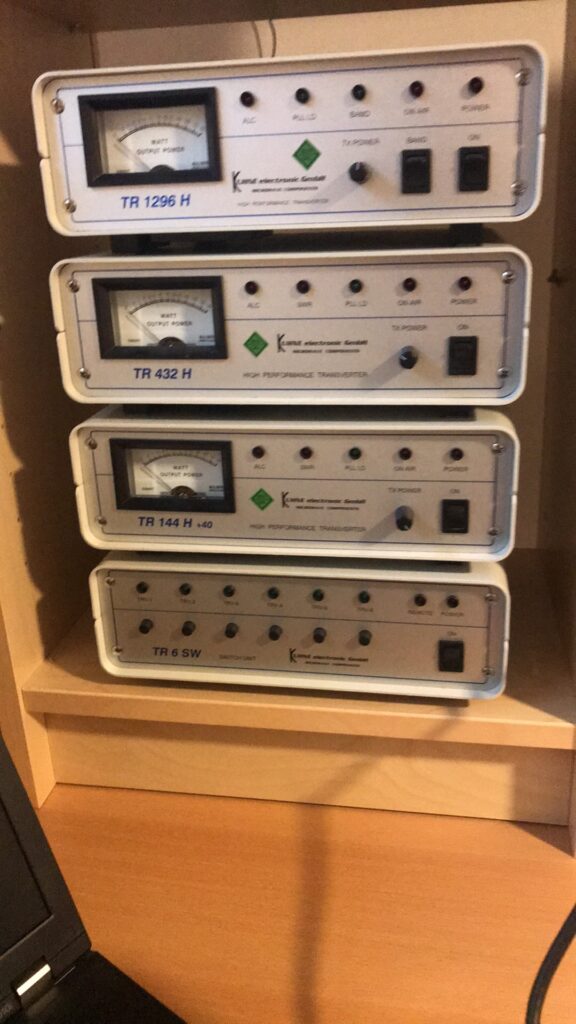

I have four transverters, 70-144-432 & 1296 MHz
Have also build Kuhne kits for 2400MHz, 5760MHz and 10368MHz.
Looking forward to the day where my neighbour contries also work at 2400MHz

1296 MHz is a Kuhne kit with 20W PA
2400 MHz is actual my old 2320MHz transverter, where X-tal is exchanged.
It’s is also a Kuhne kit, but only 0.5W out.

Kits used is from OZ7IGY team.
On top is my 10 MHz rubidium witch I use to lock my LO’s on all transverters from 144 MHz and up.

It’s only room for the LO and LO amplifier + instrument showing output from transverter and PA witch is located in the tower, close to the feed.
All is kits from Kuhne.
